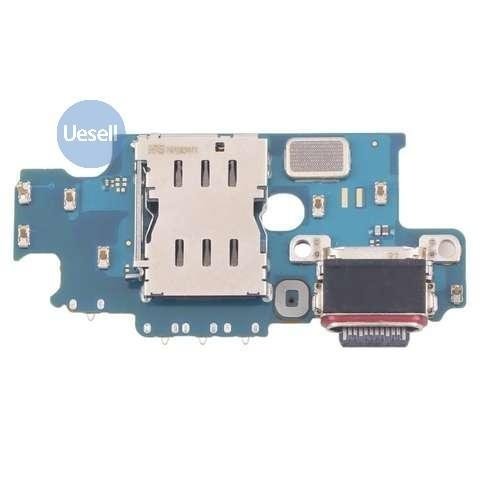

Product Description: Charging Port Board for Samsung Galaxy S24+ 5G (SM-S9260)
- Compatibility & Functionality
- Designed specifically for Samsung Galaxy S24+ 5G (Model: SM-S9260), released in January 2024.
- Supports USB Type-C 3.2 with 45W Super Fast Charging (PD3.0), 10Gbps data transfer, and OTG (On-The-Go) functionality.
- Integrated microphone module for clear call quality (located near the charging port).
- Design & Build
- Flexible FPC (Flexible Printed Circuit) cable with corrosion-resistant connectors for durability.
- Matches the phone’s IP68-rated dust/water resistance (submersion up to 1.5m for 30 minutes).
- Includes charging port, microphone, and SIM card reader as a single unit (varies by supplier).
- Key Features
- Optimized for the S24+’s 4,900mAh battery and 45W PD charging (requires Samsung-certified 45W charger + 5A E-marked cable).
- Original-grade components to ensure compatibility with Samsung’s adaptive fast charging protocols.
- Note: The S24+ also supports 15W Qi wireless charging and 4.5W reverse wireless charging.
- Installation & Notes
- Requires careful disassembly due to the phone’s IP68-sealed design.
- Avoid non-certified chargers to prevent damage (recommended: Samsung 45W EP-TA800 charger).
- Common issues resolved: Loose charging, port damage, or microphone failure.
Additional Info:
- The USB-C port is located at the bottom edge, alongside a speaker grille (no 3.5mm jack).
- Replacement tip: Use genuine parts to maintain waterproofing and fast-charging performance
