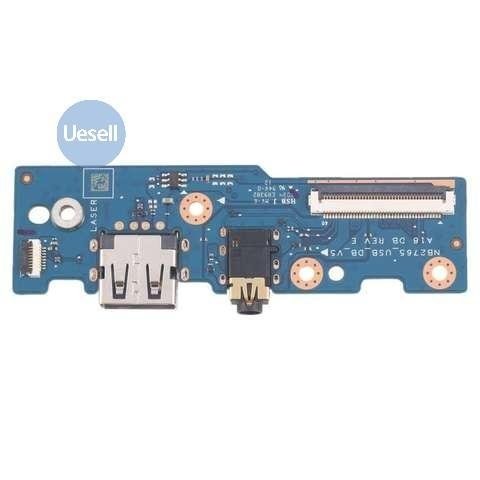

Product Description: Audio Port & USB Power Board for Redmi Book Pro 15
- Compatibility & Functionality
- Designed specifically for Redmi Book Pro 15 (Model: NB27695).
- Integrates 3.5mm audio jack and USB-C power delivery circuitry, supporting:
- USB-C 10Gbps (data transfer and 100W PD charging).
- Audio output/input via the 3.5mm jack.
- Design & Build
- Flexible FPC (Flexible Printed Circuit) cable with reinforced connectors for durability.
- Matches the laptop’s CNC aluminum unibody design and IP67-rated port sealing (dust/water resistance).
- Includes microphone lines for integrated microphone functionality.
- Key Features
- Supports dual USB-C ports (left/right side):
- Left USB-C: Combines PD charging + DP 1.4 video output.
- Right USB-C: Dedicated PD charging port.
- Note: The laptop lacks wireless charging; USB-C is the sole charging method.
- Supports dual USB-C ports (left/right side):
- Installation & Notes
- Requires careful disassembly due to the laptop’s sealed design (follow official repair guides).
- Avoid non-certified chargers to prevent damage (recommended: 100W GaN PD charger).
- Common issues resolved: Loose charging, audio jack failure, or port damage
